Description
• Excellent corrosion and wear resistance
• Resistance of chemicals including diluted acids and alkalis, petroleum solvents, alcohols, greases and oils
• Resistance to humidity & water
• Resistance to ultraviolet radiation
• Excellent resistance to abrasion
• Impact resistance without chipping or cracking

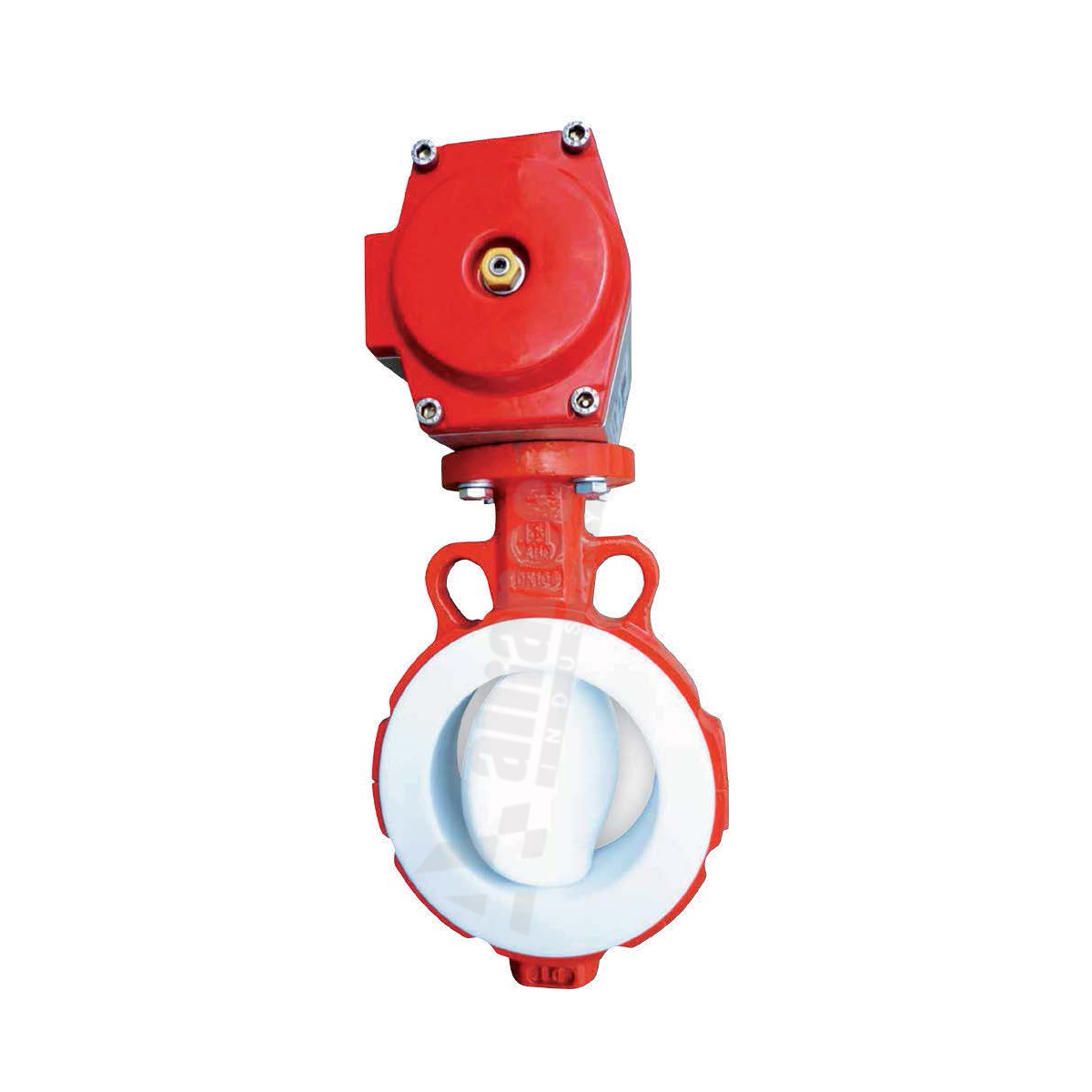

ABO 500 is a 150 class wafer soft-seal butterfly valve for chemical industry and available for corrosive media.
ABO 500 has a maximum working pressure of 10 bar and a temperature range of -40℃~+200℃。
Main Parameters
Nominal diameter:DN50-200（2"-8"）
Nominal pressure: PN6-16,Class150
Disc material:Stainless steel
Connection: Flange
Application fields:Chemical industry
Series Description
1.Test procedures are established according to: ANSI/FCI 70-2, API 598, ISO 5208, EN 12266-1
2.Extended neck design allows for piping insulation and enables easy access for actuator mounting
3.PTFE encapsulated steel bearing ensures precision alignment of the upper and lower stem
4.Manufacturing according to the requirements of the European Directive 2014/68/EU – Equipment under pressure (Category III, Module H)
5.Disc has min. 3 mm thickness of pure virgin PTFE coating
6.Upper stem seal system prevents any environmental contaminants from entering the stem bore
Picture Show
.jpg)
.jpg)

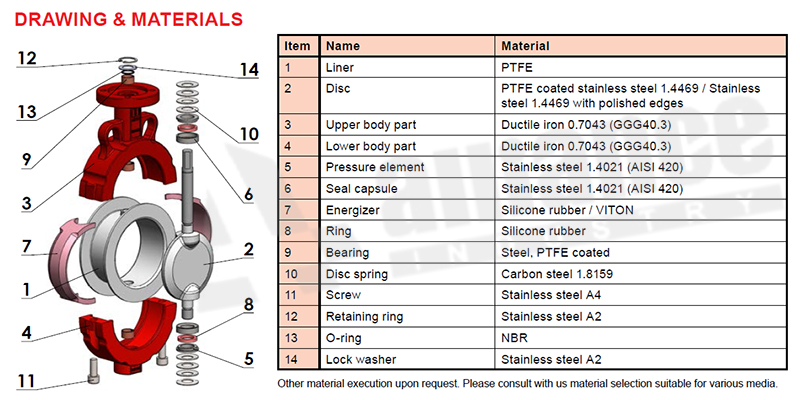

Show Details
.jpg)
Certificate
.jpg)
ABO 500 has a maximum working pressure of 10 bar and a temperature range of -40℃~+200℃。
Main Parameters
Nominal diameter:DN50-200（2"-8"）
Nominal pressure: PN6-16,Class150
Disc material:Stainless steel
Connection: Flange
Application fields:Chemical industry
Series Description
1.Test procedures are established according to: ANSI/FCI 70-2, API 598, ISO 5208, EN 12266-1
2.Extended neck design allows for piping insulation and enables easy access for actuator mounting
3.PTFE encapsulated steel bearing ensures precision alignment of the upper and lower stem
4.Manufacturing according to the requirements of the European Directive 2014/68/EU – Equipment under pressure (Category III, Module H)
5.Disc has min. 3 mm thickness of pure virgin PTFE coating
6.Upper stem seal system prevents any environmental contaminants from entering the stem bore
